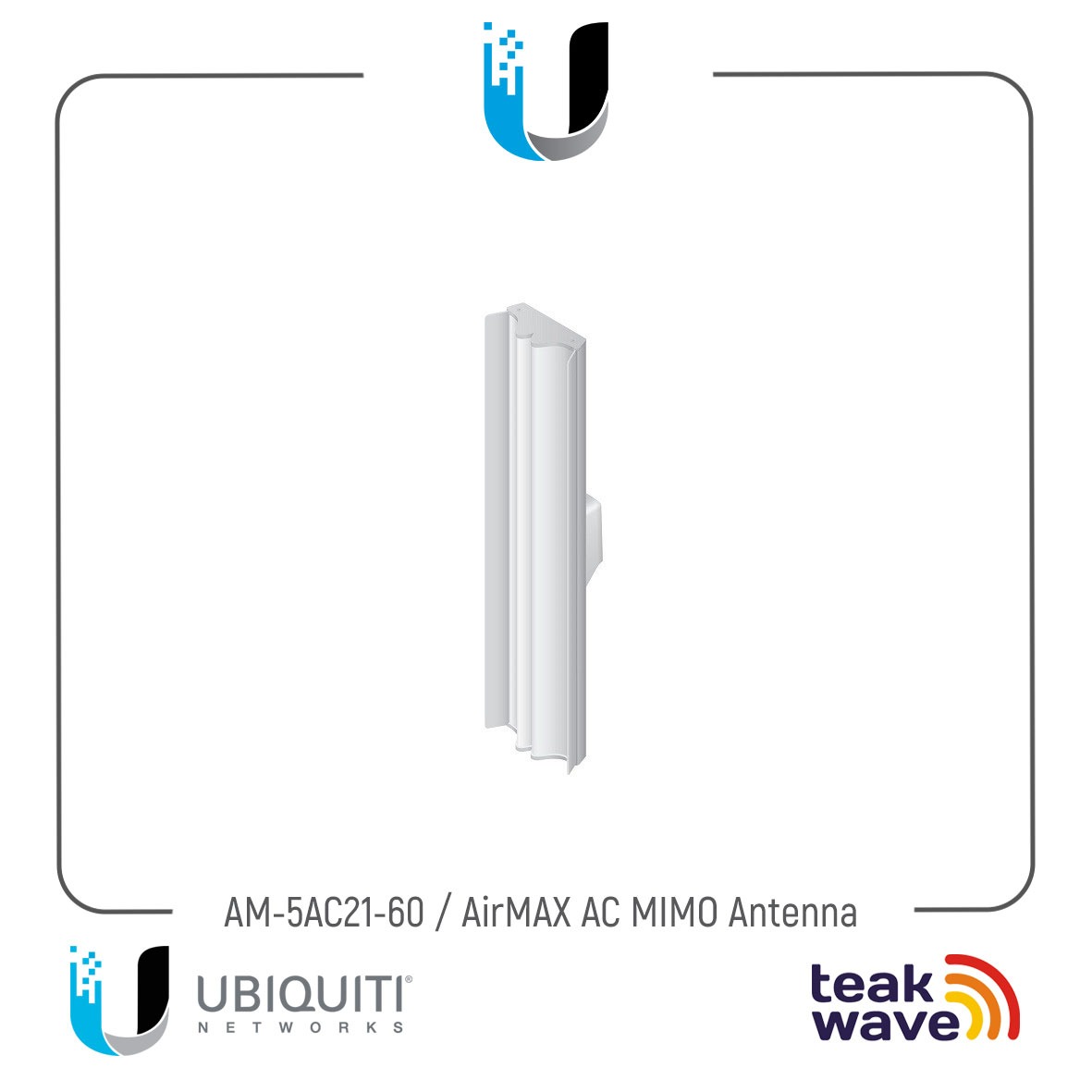

Ubiquiti AM-5AC21-60 ac 2×2 BaseStation Sector Antenna

Breakthrough Design and Performance
The airMAX® ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2×2, dual-polarity performance for airMAX networks.

Superior Noise Immunity
Featuring reduced sidelobes and backlobes, the airMAX® ac Sector Antennas are engineered to reject noise interference in co‑location deployments.

Market-Leading Beam Performance
Compare the diagram of the airMAX® ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.

Industrial-Strength Construction
airMAX® ac Antennas are designed with robust mechanical design for outdoor application use.

Plug and Play Integration
Every airMAX® ac Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.

AM-5AC21-60 Antenna Characteristics
– Dimensions* : 750 x 173 x 78 mm, (29.53 x 6.81 x 3.07″)
– Weight : 4.8 kg, (10.58 lbs)
– Frequency Range : 5.10 – 5.85 GHz
– Gain : 21 dBi
– HPOL Beamwidth : 60 (6 dBi)
– VPOL Beamwidth : 60 (6 dBi)
– Electrical Beamwidth : 4
– Electrical Downtilt : 2
– Max. VSWR : 1.5:1
– Wind Survivability : 200 km/h, (125 mph)
– Wind Loading : 391 N @ 200 km/h, (88 lbf @ 125 mph)
– Polarization : Dual-Linear
– Cross-Polarization Isolation : 25 dB Min.
– ETSI Specification : EN 302 326 DN2
