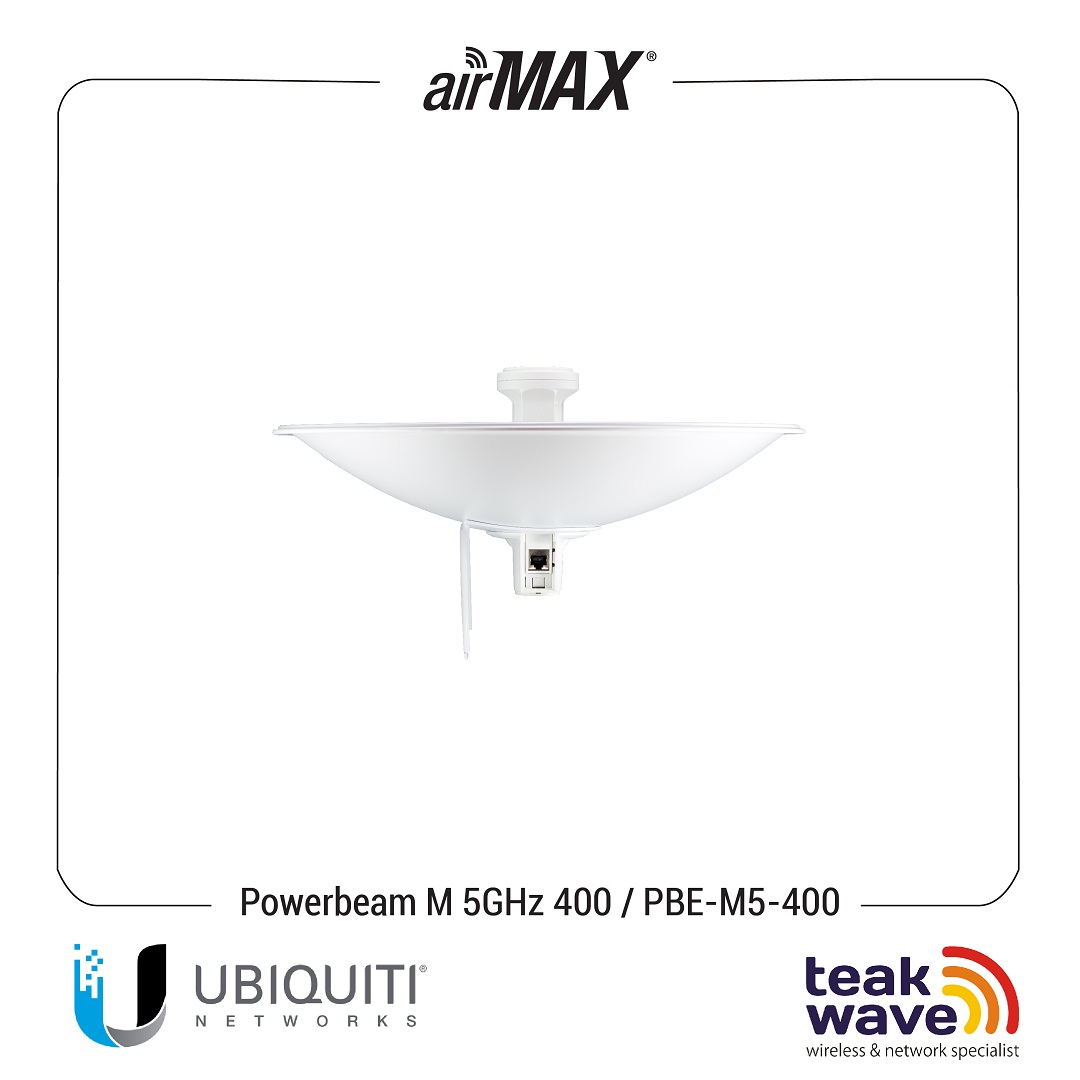

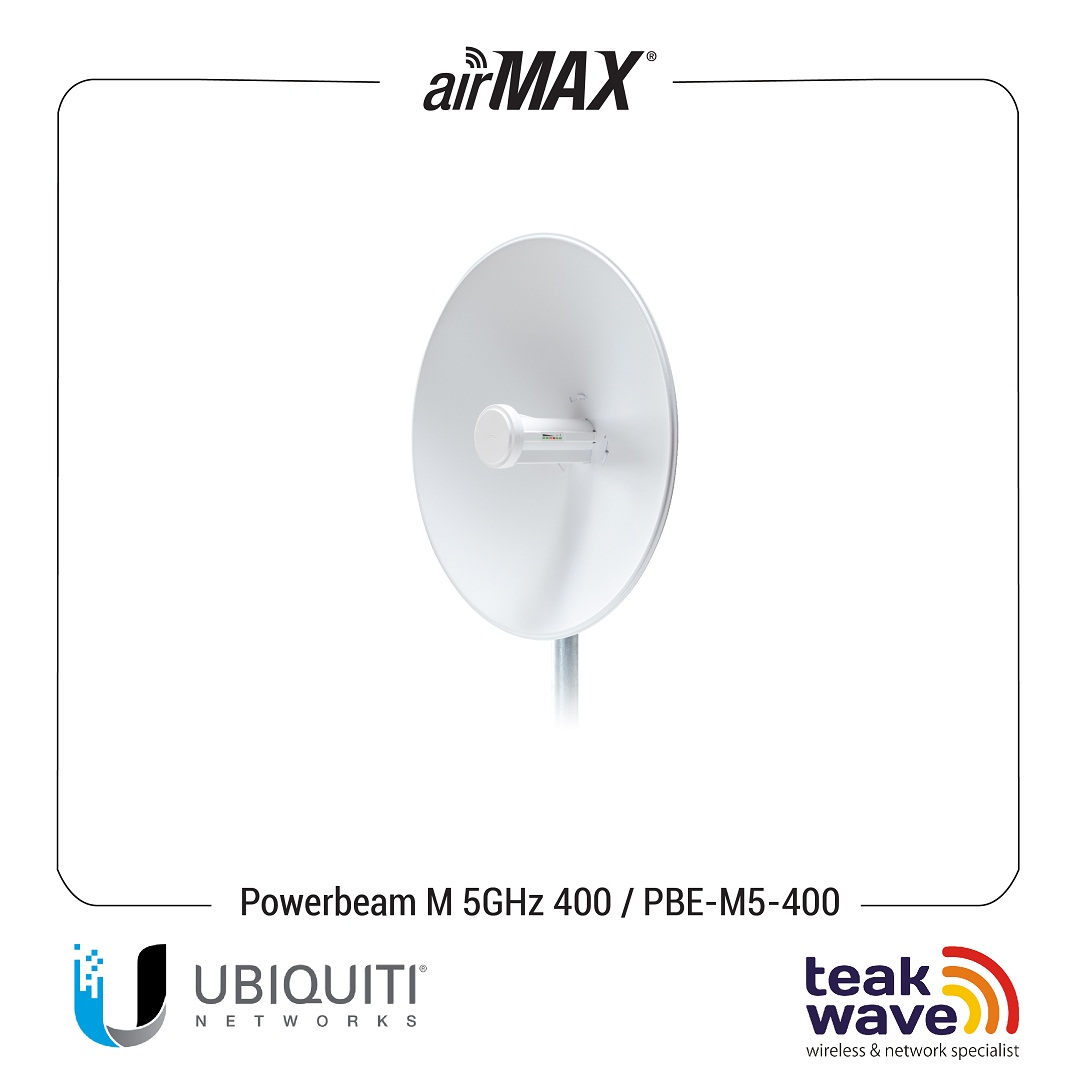

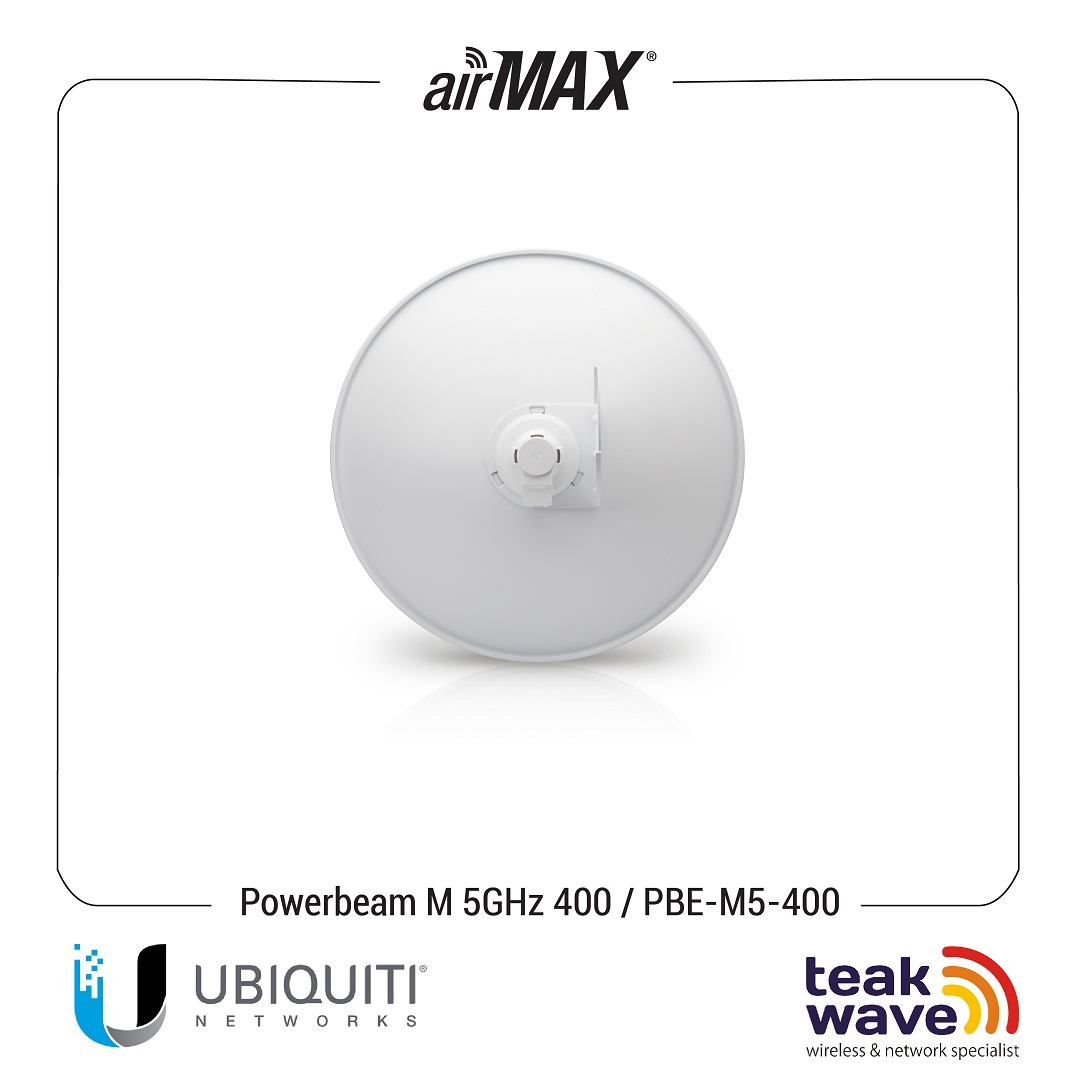

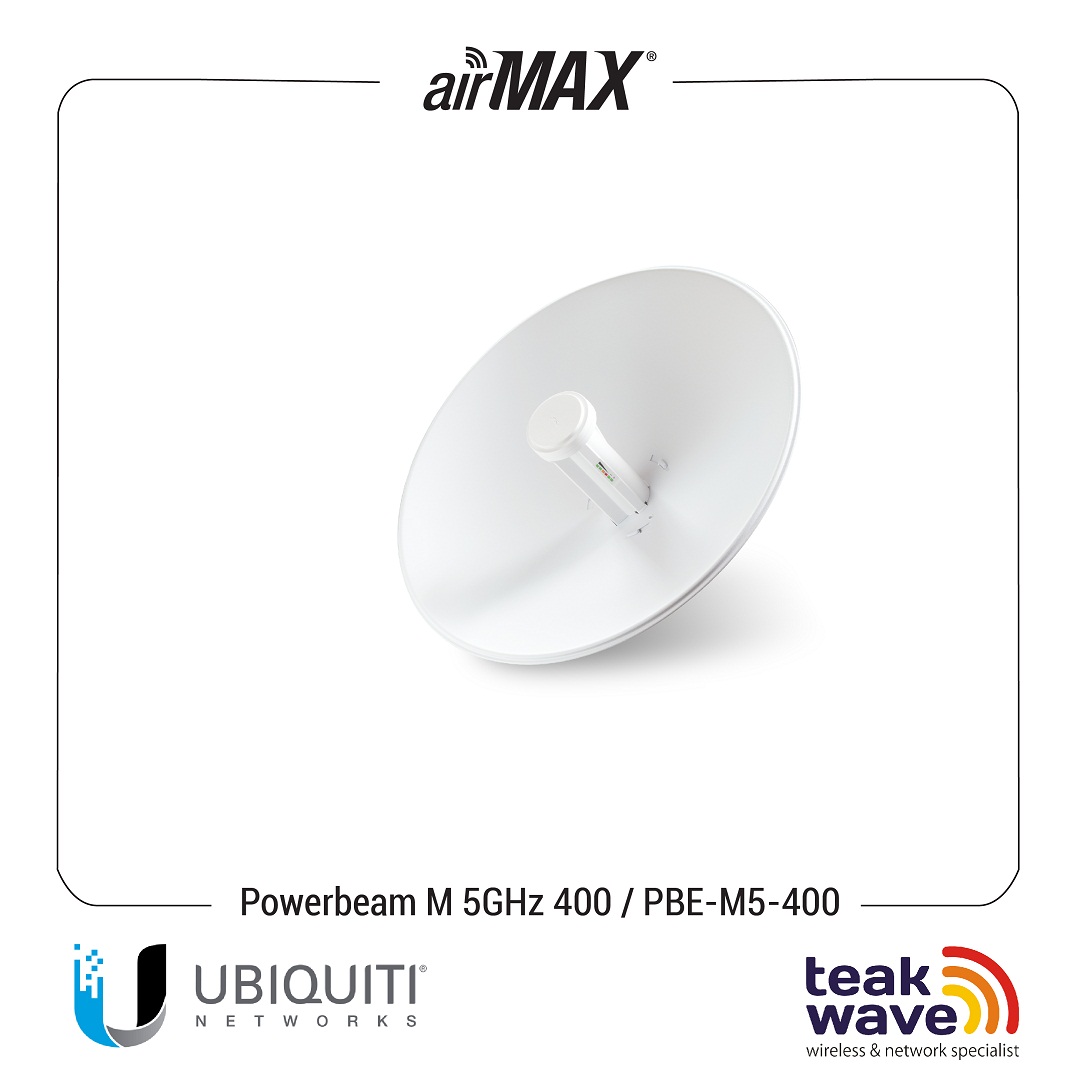

Name: Powerbeam M 5GHz 400
SKU: PBE-M5-400
Price: 1352868 IDR
Availability: InStock

Powerbeam M 5GHz 400

~~Rp 1,447,000~~ Rp 1,352,868

Jaringan Ubiquiti merupakan pelopor desain all-in-one untuk produk airMAX® yang berfungsi sebagai CPE. Sekarang Ubiquiti Networks meluncurkan yang terbaru yaitu generasi CPE, PowerBeam®. PowerBeam mengarahkan energi RF dalam beamwidth yang lebih ketat dengan fokus pada satu arah secara spasial yang dapat menyaring kekebalan suara. Fitur ini sangat penting untuk sebuah area yang ramai dengan sinyal RF lainnya atau frequensi yang serupa. Desain terpadu Teknologi InnerFeed® Ubiquiti mengintegrasikan radio ke feedhorn antena sehingga tidak perlu menggunakan kabel.

Add to Wishlist

Add to Compare

SKU: PBE-M5-400 Category: Ubiquiti

Description

Spesifikasi Powerbeam M 5GHz 400/PBE-M5-400
Dimensions	420 x 420 x 275 mm (16.54 x 16.54 x 10.83″)
Weight	1.753 kg (3.87 lb)
Power Supply	24V, 0.5A Gigabit PoE
Power Method	Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption	8W
Gain	25 dBi
Operating Frequency
Worldwide	5170 – 5875 MHz
USA	5725 – 5850 MHz
Wind Loading	342.5 N @ 200 km/h (77 lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
LEDs	(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs	Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes	5/8/10/20/30/40 MHz
Polarization	Dual Linear
Enclosure	Outdoor UV Stabilized Plastic
Mounting	Pole-Mount Kit Included
ESD/EMP Protection	Air: 24 kV, Contact: 24 kV
Operating Temperature	-40 to 70 C (-40 to 158 F)
Operating Humidity	5 to 95% Noncondensing
Salt Fog Test	IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test	IEC 68-2-6
Temperature Shock Test	IEC 68-2-14
UV Test	IEC 68-2-5 at 40 C (104 F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test	ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
PBE-M5-400 System and Regulatory/Compliance
Processor Specs	Atheros MIPS 74Kc, 560 MHz
Memory	64 MB DDR2, 8 MB Flash
Networking Interface	(1) 10/100/1000 Ethernet Port
Wireless Approvals	FCC, IC, CE
RoHS Compliance	Yes
PBE-M5-400 Antenna Information
Gain	25 dBi
Max. VSWR	1.5:1
Built-In Mechanical Downtilt	+20 to -10

Additional information

Weight	2300 g
