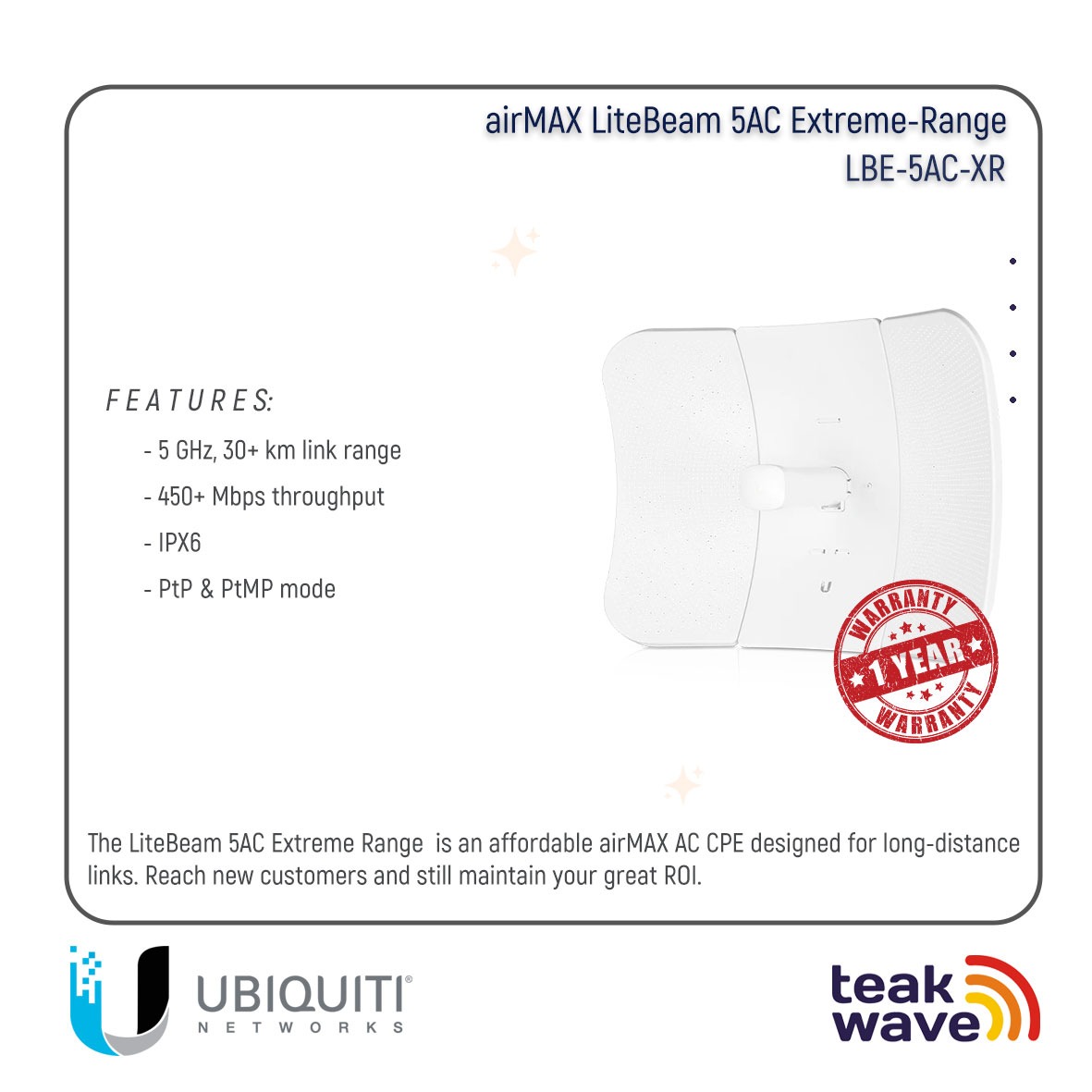

Ubiquiti LBE 5AC XR UISP airMAX LiteBeam LBE-5AC-XR

Mechanical
Dimensions 747 x 525 x 347 mm (29.41 x 20.67 x 13.66″)
Weight 3.2 kg (7.06 lb)
Enclosure materials Aluminum alloy, UV stabilized polycarbonate
Mount material UV stabilized polycarbonate
Mounting Integrated pole mount (included)
Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36″)
Wind loading 1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproofing IPX6

Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 😎
Power supply 24V DC, 0.5A Gigabit PoE adapter (included)
Supported voltage range 22—26V DC
Max. power consumption 7W
RF connections Internal
LEDs Power/ethernet
Button Factory reset
Operating temperature -40 to 70° C (-40 to 158° F)
Operating humidity 5 to 95% non-condensing
Certifications FCC, IC, CE

System
Maximum throughput 450+ Mbps
Encryption WPA2-PSK (AES)

Software
OS airOS®
Modes PtMP, PtP
Services SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities airView®, speed test, alignment, discovery, ping, traceroute, constellation
Management interface Dedicated management radio for quick device setup via the UISP™ Mobile app
WEB UI
Minimum software requirements Modern Web browser or Android/iOS smartphone

RF
Operating frequency* 5.15 to 5.85 GHz
* Depends on regulatory region.
Max. conducted TX power 25 dBm
Management radio 2400 – 2483.5 MHz
Channel bandwidth 10/20/30/40/50/60/80 MHz
Antenna Gain 29 dBi
Isolation 20 dB
Beamwidth HPOL: 3 dB: 5.5°, 6 dB: 7.5°
VPOL: 3 dB: 5.5°, 6 dB: 7.5°
Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt 0°
