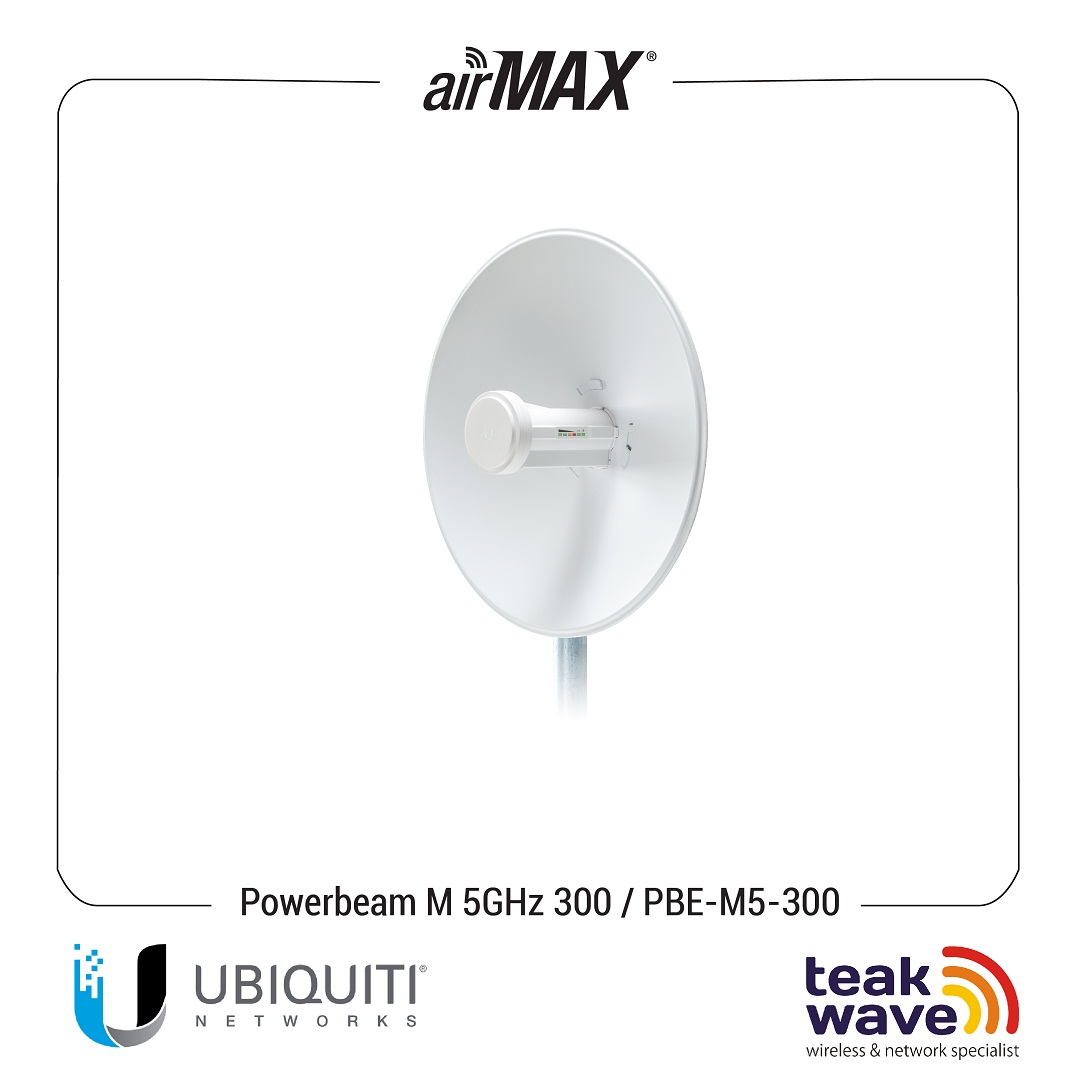

Powerbeam M 5GHz 300
Rp 1,265,000 Rp 1,186,035
PowerBeam mengarahkan energi RF dalam beamwidth yang lebih ketat dengan fokus pada satu arah secara spasial yang dapat menyaring kekebalan suara. Fitur ini sangat penting untuk sebuah area yang ramai dengan sinyal RF lainnya atau frequensi yang serupa. Desain terpadu Teknologi InnerFeed® Ubiquiti mengintegrasikan radio ke feedhorn antena sehingga tidak perlu menggunakan kabel.
Spesifikasi Powerbeam M 5GHz 300/PBE-M5-300 | |
Dimensions | 325 x 325 x 256 mm (12.80 x 12.80 x 10.08″) |
Weight | 1.203 kg (2.65 lb) |
Power Supply | 24V, 0.5A PoE |
Max. Power Consumption | 6W |
Operating Frequency Worldwide USA | U-NII-1 USA: U-NII-2A USA: U-NII-2C USA: U-NII-3
5150 – 5875 MHz 5150 – 5250 MHz* 5250 – 5350 MHz* 5470 – 5725 MHz* 5725 – 5850 MHz* |
Gain | 22 dBi |
Networking Interface | (1) 10/100 Ethernet Port |
Processor Specs Atheros | MIPS 74Kc, 560 MHz |
Memory | 64 MB DDR2, 8 MB Flash |
LEDs | (1) Power, (1) LAN, (4) WLAN |
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels | |
Max. VSWR | 1.5:1 |
Channel Sizes | 5/8/10/20/30/40 MHz |
Polarization | Dual Linear |
Enclosure | Outdoor UV Stabilized Plastic |
Mounting | Pole-Mount (Kit Included) |
Wind Loading | 145.2 N @ 120 km/h (33 lbf @ 75 mph) |
Wind Survivability | 120 km/h (75 mph) |
ESD/EMP Protection Air | ± 24 kV, Contact: ± 24 kV |
Operating Temperature | -40 to 70° C (-40 to 158° F) |
Operating Humidity | 5 to 95% Noncondensing |
Wireless Approvals | FCC, IC, CE |
RoHS Compliance | Yes |
Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
Vibration Test | IEC 68-2-6 |
Temperature Shock Test | IEC 68-2-14 |
UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
Weight | 1400 g |
---|
