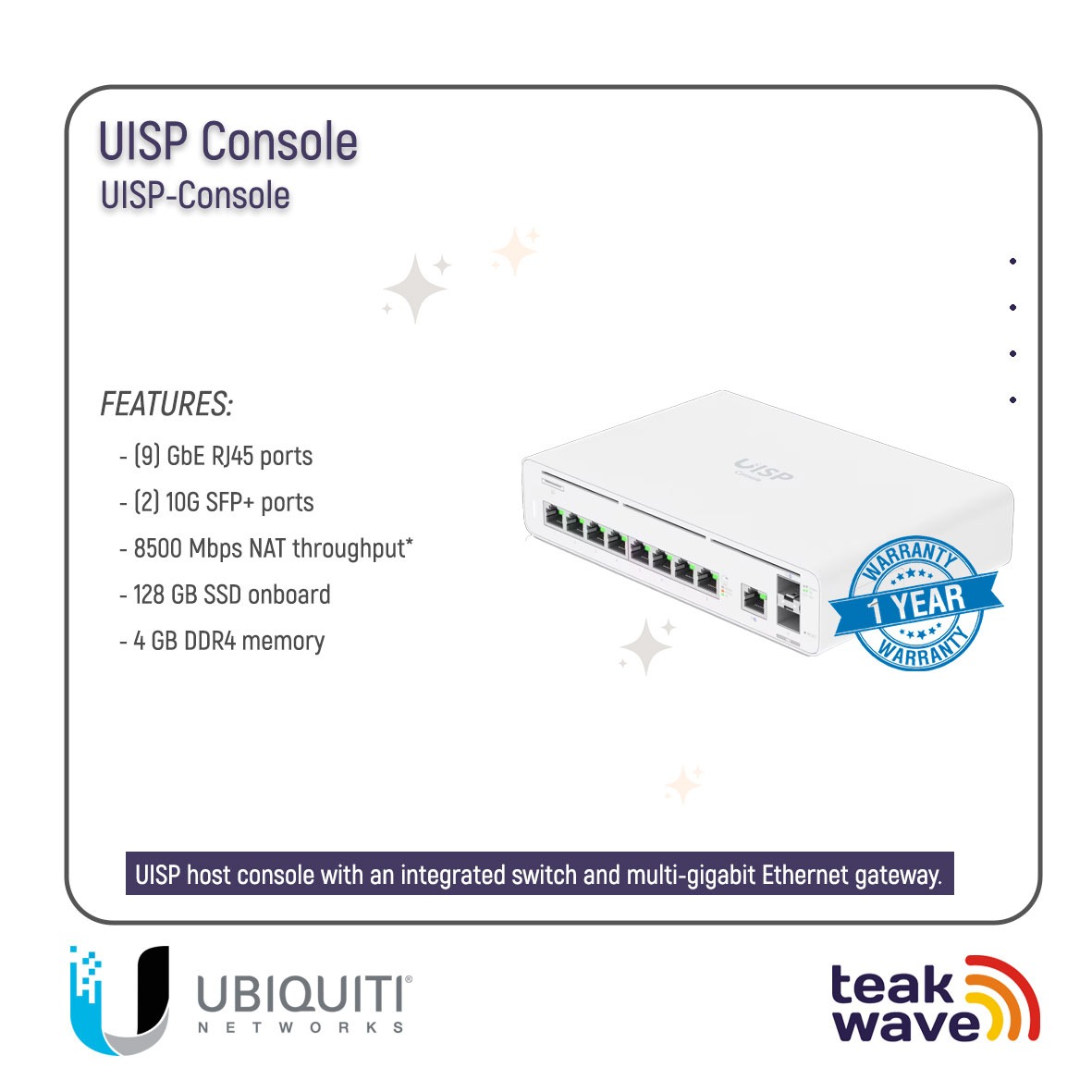

Ubiquiti UISP Console – UISP-Console

UISP host console with an integrated switch and multi-gigabit Ethernet gateway.

The UISP® Console is designed to support small to moderate UISP deployments with its built-in switch equipped with (8) GbE RJ45 LAN ports. The UISP Console also serves as a high-performance gateway with (1) 10G SFP+ LAN port and (2) WAN ports (10G SFP+ and GbE RJ45) that provide an ample connectivity range capable of supporting the most data-intensive deployments.

Product Features:
(2) 10G SFP+ ports
(9) GbE RJ45 ports
Powered by an external AC/DC adapter (included)
Compact, durable metal casing
1U rack or wall-mountable (kits included)
Easy, Bluetooth-powered setup via the UISP Mobile app
Pre-installed UISP application
Product Specifications:

Mechanical

Dimensions: 210.4 x 140.2 x 43.7 mm (8.3 x 5.5 x 1.7″)
Weight: 1.5 kg (3.2 lb)
Enclosure materials: SGCC steel, polycarbonate
Hardware

Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory: 4 GB DDR4
Onboard flash storage: 16 GB eMMC
Onboard storage: 128 GB SSD
Card slot: (1) microSD
Networking interface:
(8) LAN: GbE RJ45 ports
(1) LAN: 1/10G SFP+ port
(1) WAN: GbE RJ45 port
(1) WAN: 1/10G SFP+ port
Management interface:
Ethernet In-band
Bluetooth
Power method:
(1) External AC/DC adapter
(1) Power TransPort DC input 27V DC, 1.5A
Power supply: 24V DC, 2.5A power adapter (included)
Supported voltage range: 24—28V DC
Max. power consumption: 30W
ESD/EMP protection: Air: ± 15kV, contact: ± 8kV
Operating temperature: -10 to 50° C (14 to 122° F)
Operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
