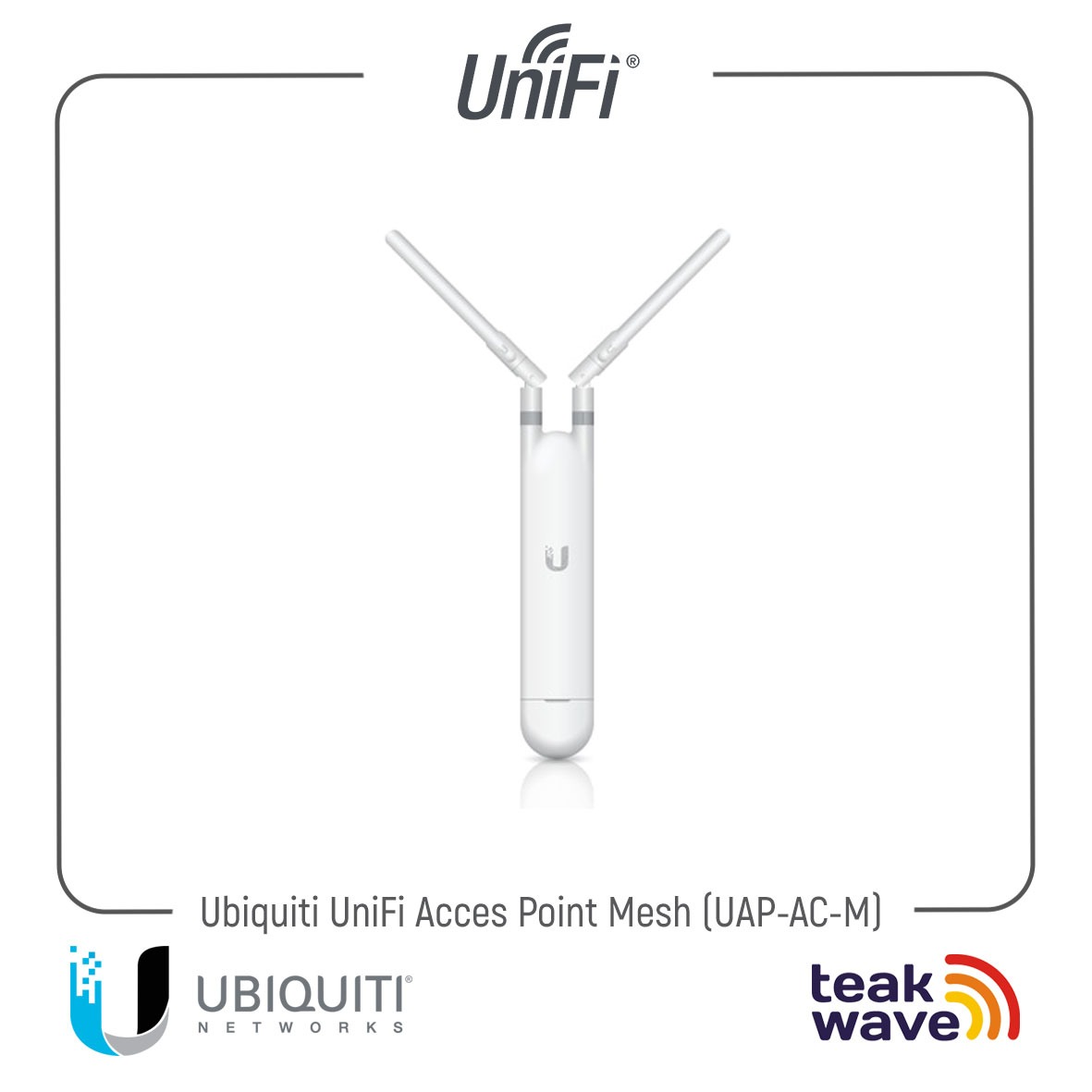

Ubiquiti Access Point Mesh / UAP-AC-M

Dimensions 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35″)
Weight 152 g (5.36 oz) with Antennas
Networking Interface (1) 10/100/1000 Ethernet Port
Buttons Reset
Power Method 24V Passive PoE (Pairs 4, 5+; 7, 8 Return);
802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
(Supported Voltage Range: 44 to 57VDC)
Power Supply 24V, 0.5A Gigabit PoE Adapter*
Power Save Supported
Maximum Power Consumption 8.5W
Maximum TX Power
2.4 GHz
5 GHz
20 dBm
20 dBm
Antennas
2.4 GHz
5 GHz
(2) External Dual-Band Omni Antennas
3 dBi
4 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to Four per Radio
Mounting Wall/Pole/Fast-Mount (Kits Included)
Operating Temperature -30 to 70 C (-22 to 158 F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
